Streaming Music On Hold for X-Blue
Bring live, licensed music and messages to an X-Blue on-site phone system through its external hold-music input.
X-Blue Hold Music and Messages with Easy On Hold®
An X-Blue X16 Plus can use an external audio player for Music on Hold. Easy On Hold's 2-Channel Business Audio System (2CBAS) receives your live music and message stream over the network and sends the audio through the X-Blue system's external music input.
This gives an on-site X-Blue system a changing program of licensed music and custom announcements. Your team manages individual topics and schedules in the Easy On Hold Content Control Center™, so routine updates do not require replacing an audio file on the phone system.

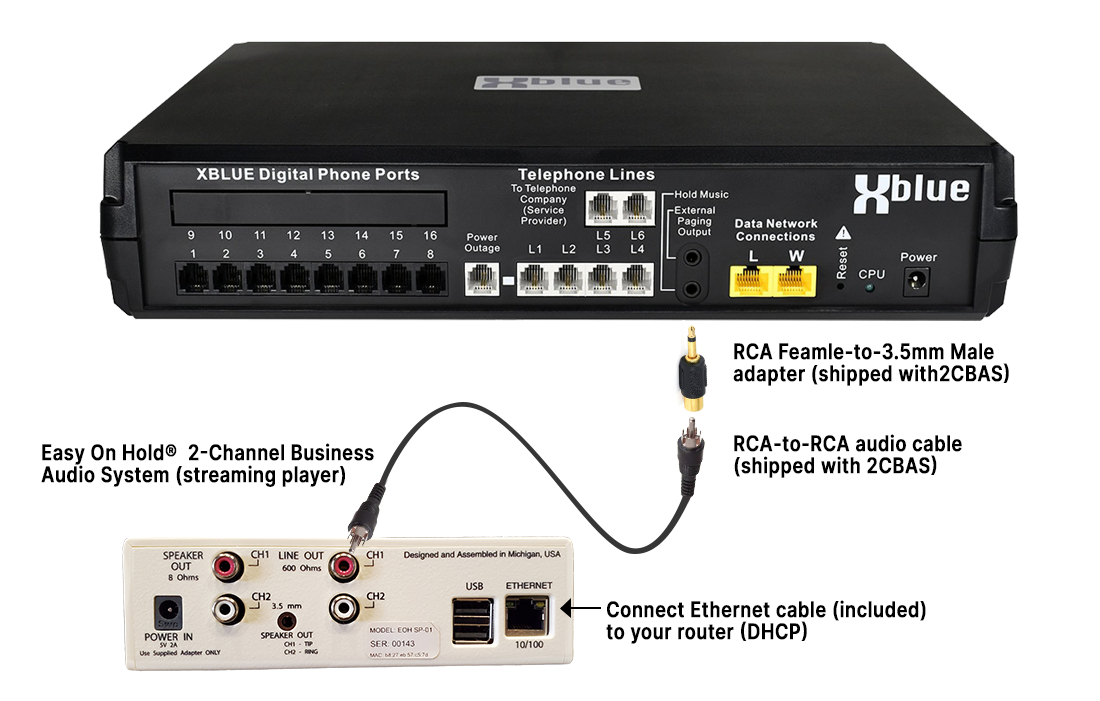

The diagram shows the physical connection: Ethernet to the 2CBAS, its Channel 1 line output to the supplied RCA cable and adapter, and the 3.5 mm plug to the X-Blue Music on Hold input. Select External as the music source in X-Blue programming before testing a call.
Hover to enlarge on desktop, or click or tap the diagram.
How to Connect X-Blue to Your Live Audio
Connect the 2CBAS to the Network
Connect the 2CBAS Ethernet port to your router or network. Easy On Hold provisions your licensed music and messages stream for the player.
Connect the Audio Cable
Use the supplied RCA cable from the 2CBAS Channel 1 Line Out. Attach the supplied RCA-to-3.5 mm adapter, then plug it into the X-Blue system's external Music on Hold input. Use the diagram above to identify the ports.
Select External Music on X-Blue
On the X16 phone, press Program, open System Setup, enter the setup password, then set Music Source to External. Your administrator can confirm the menu labels for your model and firmware.
Place a Test Call
Put a real call on hold to confirm audio plays at a comfortable level. Adjust the player output or phone system settings as needed, then schedule and update content in your Easy On Hold portal.
X-Blue Music On Hold FAQs
What to know before connecting a live audio program.
The X16 Plus receives audio through its external Music on Hold input. The Easy On Hold 2CBAS receives the live stream over the network and outputs audio to that input.
Set the X16 Music Source to External so the phone system plays audio from the connected input rather than its internal hold-music source.
Authorized users manage message topics and schedules in the Easy On Hold Content Control Center. The 2CBAS continues playing the live program, so routine changes do not require reconnecting the audio cable.
Yes. Hover over the diagram on a desktop, or click or tap it to open a larger view. Use the close button or Escape key to return to the page.
